Precision sheet metal fabrication demands more than cutting and bending metal—it requires systematic engineering from concept through production. Mechanical design and engineering bridge the gap between what customers envision and what manufacturers can reliably produce at scale.
These disciplines determine whether a product succeeds or fails in the real world. A well-engineered design accounts for material properties, manufacturing constraints, assembly requirements, and real-world operating conditions before the first piece of metal is cut. Poor engineering creates expensive problems: parts that don’t fit, assemblies that fail under stress, designs that require costly rework.
This guide explains how mechanical design and engineering work in precision sheet metal fabrication, why in-house engineering teams provide competitive advantages, and how proper engineering reduces risk while compressing development timelines.
What Is Mechanical Design in Metal Fabrication?
Mechanical design translates customer requirements into detailed specifications that manufacturing teams can execute. Designers create blueprints, 3D models, and technical drawings that define every dimension, tolerance, material specification, and assembly relationship in a product.
In precision sheet metal fabrication, mechanical design answers critical questions before production begins:
- What materials will withstand the operating environment?
- Which fabrication methods achieve required tolerances most efficiently?
- How do individual components fit together in the final assembly?
- Where will stress concentrate under load, vibration, or thermal cycling?
- Can the design be manufactured repeatably at target volumes and costs?
Key Elements of Mechanical Design
Dimensional Precision and Tolerancing
Sheet metal fabrication operates in thousandths of an inch. Mechanical designers specify tolerances that balance functional requirements against manufacturing capabilities and cost. Tighter tolerances increase precision but also increase production time and scrap rates. Effective design specifies tight tolerances only where function demands them.
Material Selection and Properties
Designers select materials based on strength requirements, corrosion resistance, weight constraints, thermal properties, and cost considerations. Common precision sheet metal materials include:
- Aluminum alloys (lightweight, corrosion-resistant, good thermal properties)
- Stainless steel (corrosion-resistant, strong, aesthetic finishes available)
- Carbon steel (high strength, cost-effective, requires coating for corrosion protection)
- Galvanized steel (corrosion-resistant coating for outdoor applications)
Each material behaves differently during fabrication. Aluminum machines easily but work-hardens during forming. Stainless steel requires more force to bend and can crack if bend radii are too tight. Designers must account for these material characteristics when creating specifications.
Design for Manufacturability (DFM)
The best designs consider manufacturing realities from the start. Design for manufacturability principles guide designers to create products that are:
- Easier and faster to fabricate
- Less prone to manufacturing defects
- More cost-effective to produce at volume
- Simpler to assemble and test
DFM considerations include minimizing complex bends, avoiding tight tolerances in non-critical areas, designing parts that nest efficiently on sheet material, and creating features compatible with standard tooling.
Functional Requirements and Performance
Mechanical design must satisfy the product’s intended purpose. An electronics enclosure needs proper ventilation and electromagnetic shielding. A structural bracket must support specified loads without deflecting. A medical device housing requires biocompatible materials and easy sterilization.
Designers translate these functional requirements into specific geometric features, material selections, and assembly methods that ensure the product performs as intended throughout its service life.
How Mechanical Engineering Supports Metal Fabrication
While mechanical design creates the blueprint, mechanical engineering ensures that blueprint translates into a manufacturable, reliable product. Engineers analyze designs, identify potential problems, optimize manufacturing processes, and solve technical challenges that arise during production.
Engineering Analysis and Validation
Stress Analysis and Finite Element Analysis (FEA)
Engineers use computational tools to predict how designs will behave under real-world conditions before manufacturing begins. Finite Element Analysis simulates:
- Mechanical stress from loads, impacts, and vibration
- Thermal expansion and contraction under temperature changes
- Deflection under weight or external forces
- Fatigue life under cyclical loading
- Stress concentration at corners, holes, and transitions
FEA reveals whether a design will fail and where failure will occur, allowing engineers to reinforce weak points or modify geometry before expensive tooling is created. This analysis prevents field failures and warranty claims while optimizing material usage—using material only where structural requirements demand it.
Industry-Specific Engineering Requirements
Engineering priorities vary by application. In medical device enclosures, engineers must account for sterilization compatibility and tight tolerance stack-up across precision assemblies where dimensional variation of a few thousandths can prevent proper sealing. In defense programs, vibration resistance and thermal cycling analysis are critical before production release—components must survive shock loads and temperature extremes from -40°C to +85°C. Aerospace applications demand weight optimization through topology analysis, ensuring structures provide necessary strength at minimum mass while meeting fatigue life requirements for thousands of flight cycles.
Material Properties and Selection
Engineers evaluate material properties against application requirements:
- Yield strength and ultimate tensile strength (how much load before permanent deformation or failure)
- Hardness (resistance to wear and indentation)
- Ductility (ability to deform without fracturing)
- Fatigue resistance (performance under repeated loading cycles)
- Corrosion resistance (durability in specific environments)
- Thermal conductivity (heat dissipation requirements)
- Electrical conductivity (grounding and shielding applications)
Material selection affects both product performance and manufacturing feasibility. Engineers balance performance requirements against cost, availability, and manufacturing characteristics.
Manufacturing Process Optimization
Engineers determine the most efficient fabrication methods for each design:
- Laser cutting for complex geometries and tight tolerances
- Turret punching for high-volume parts with standard hole patterns
- CNC machining for precision features and threaded holes
- Welding and brazing for permanent assemblies
- Press brake forming for bends and flanges
- Powder coating or other finishing for corrosion protection and aesthetics
Process selection affects lead time, cost, and quality. Engineers consider production volume, tolerance requirements, material thickness, and equipment capabilities when recommending manufacturing approaches.
Tolerance Stack-Up Analysis
Complex assemblies involve multiple parts, each with dimensional tolerances. Engineers perform tolerance stack-up analysis to ensure parts will fit together properly despite manufacturing variation. This analysis identifies:
- Which dimensions are critical to assembly and function
- Where tolerances can be relaxed to reduce cost
- Whether assembly methods (welding, fasteners, adhesives) accommodate expected variation
- If adjustability or shimming is needed during assembly
Proper tolerance analysis prevents assemblies that look perfect in CAD but don’t fit in reality.

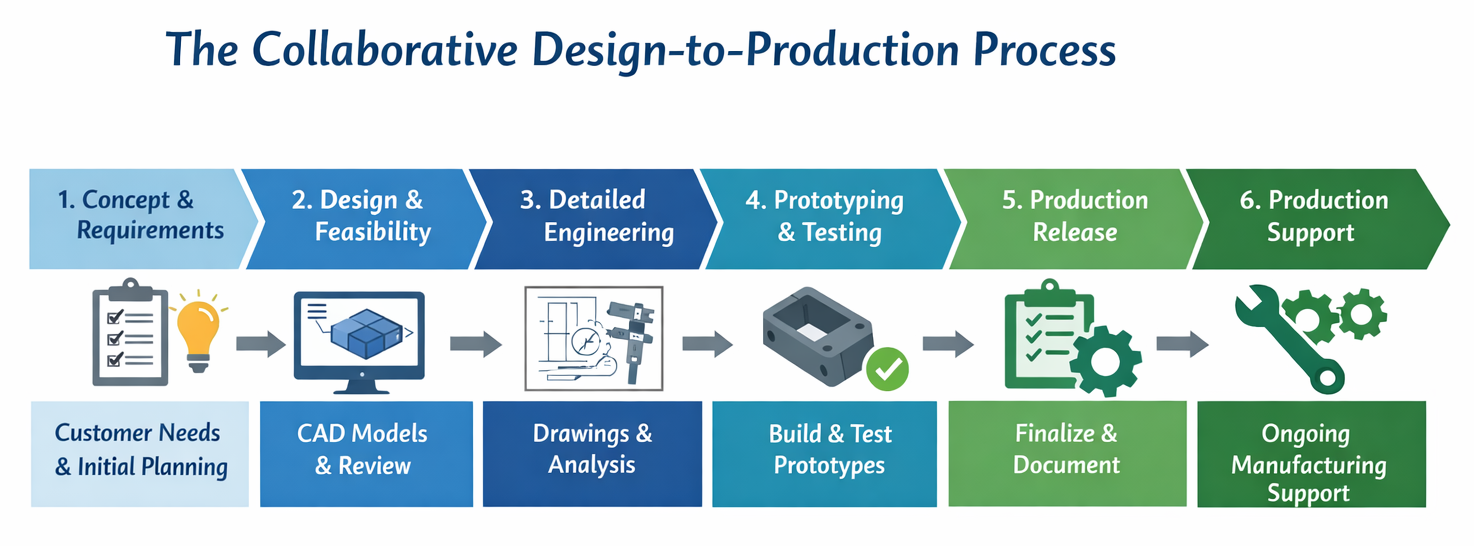

The Collaborative Design-to-Production Process
Successful fabrication projects require coordination between customers, designers, engineers, and manufacturing teams. Here’s how the process unfolds at precision sheet metal fabricators with integrated engineering capabilities:
Phase 1: Initial Concept and Requirements Definition
The process begins with understanding customer needs: functional requirements, performance specifications, operating environment, production volumes, budget constraints, and timeline expectations. Engineers ask questions that surface hidden requirements and prevent costly assumptions.
EVS Metal’s in-house engineering team works directly with customers during this phase to clarify requirements and identify potential challenges early.
Phase 2: Conceptual Design and Feasibility
Designers create initial concepts using CAD software (SolidWorks, AutoCAD, Inventor). These 3D models allow rapid iteration and visualization before committing to detailed design. Engineers review concepts for:
- Manufacturing feasibility with available equipment and processes
- Material availability and cost implications
- Potential assembly challenges
- Regulatory or certification requirements (UL, FDA, ITAR, etc.)
Early engineering input prevents designs that look good but can’t be built economically.
Phase 3: Detailed Design and Engineering Analysis
Designers develop detailed drawings with complete dimensions, tolerances, material specifications, and finish requirements. Engineers perform:
- FEA stress analysis to validate structural performance
- Thermal analysis for heat dissipation or temperature resistance
- DFM review to improve manufacturing efficiency
- Tolerance analysis to ensure assembly feasibility
- Cost analysis to identify opportunities for value engineering
This phase produces manufacturing-ready documentation including 2D drawings, 3D CAD models, bill of materials, and fabrication specifications.
Phase 4: Prototyping and Testing
Prototyping validates designs in physical form. Engineers test prototypes for:
- Dimensional accuracy and fit with mating components
- Structural performance under specified loads
- Functional performance (ventilation, shielding, thermal management)
- Assembly process feasibility
- Finish quality and appearance
Prototype testing identifies issues that analysis might miss: unexpected interference between components, assembly difficulties, finish adhesion problems, or functional shortfalls. Corrections made during prototyping prevent production problems when changes are still inexpensive.
Phase 5: Design Refinement and Production Release
Engineers incorporate prototype findings into final design revisions. Manufacturing documentation is finalized including:
- Production drawings with complete specifications
- Work instructions for complex assemblies
- Quality inspection criteria and measurement points
- Tooling and fixture requirements
- Production process routings
Phase 6: Production Support
Engineering involvement doesn’t end when production begins. Engineers provide ongoing support for:
- First article inspection and approval
- Production troubleshooting when issues arise
- Process improvements to reduce cost or improve quality
- Design changes for new requirements or product evolution
This continuous involvement ensures production quality matches design intent throughout the product lifecycle.
Engineering as Competitive Advantage
Mechanical design and engineering determine whether precision sheet metal fabrication projects succeed or fail. Proper engineering reduces risk, compresses development timelines, controls manufacturing costs, and ensures products perform reliably throughout their service lives. Fabricators with in-house engineering capabilities provide advantages external engineers cannot match: manufacturing-focused optimization, rapid problem resolution, seamless communication, and continuous improvement throughout the product lifecycle. As manufacturing technology advances and product complexity increases, integrated engineering becomes more valuable, not less. Companies that invest in engineering expertise alongside manufacturing capabilities deliver better outcomes for customers at lower total costs.
