STANDARDS & CERTIFICATIONS
Our Manufacturing Standards
At EVS Metal, we prioritize precision in every aspect of our manufacturing processes. When specific tolerances aren’t provided, we apply our industry-standard tolerances to ensure a high level of quality. These tolerances are achievable through our regular manufacturing methods, and while they may not be the tightest we can achieve, they align with recognized industry practices and norms. We may occasionally specify that a quotation is based on these standards when a print’s tolerance cannot be met using our standard processes. Please note that the addition of secondary processes like reaming, machining, or hard tooling can enhance tolerances but may impact costs.
For critical tolerances that are vital to your project’s success, we encourage you to inform us upon placing an order. Our engineering department will thoroughly evaluate these design specifications for manufacturability.
Rest assured, unless we receive specific contrary instructions, all dimensions and tolerances are applied before finishing. To facilitate seamless collaboration, we prefer receiving solid model formats in the following order of preference: Solidworks (.SLDPRT, .SLDASM), Pro-E (.PRT, .ASM), Parasolid, STEP, IGES.
Precision is our commitment, and we’re here to ensure your projects meet the highest standards of quality and accuracy.
ITAR Registration
EVS Metal proudly operates an ITAR-registered manufacturing facility in Pflugerville, Texas, just outside Austin, showcasing our commitment to serving the defense industry.
ITAR registration is granted by the U.S. State Department’s Directorate of Defense Trade Controls (DDTC), ensuring compliance with U.S. Government requirements for manufacturers, exporters, and brokers of defense articles, services, or technical data. This registration empowers EVS to bid on and manufacture defense articles for the United States Government and its authorized subcontractors.
“At EVS Metal, we take pride in contributing to our government’s defense manufacturing needs,” says Joe Amico, EVP and co-founder of EVS Metal. “Our work has a purpose beyond ourselves, and that’s truly rewarding.”
Enacted during the Cold War in 1976, ITAR serves as a vital tool for the U.S. Government to track companies involved in specific manufacturing and exporting activities. While ITAR regulations encompass various manufacturing aspects, the key directive mandates that all information and materials related to U.S. defense and military technologies are exclusively shared with U.S. Persons, unless explicitly authorized by the Department of State.
At EVS Metal, we embrace our role in supporting our nation’s defense efforts, ensuring that our operations align seamlessly with ITAR regulations to protect and advance our country’s security interests.
Quality

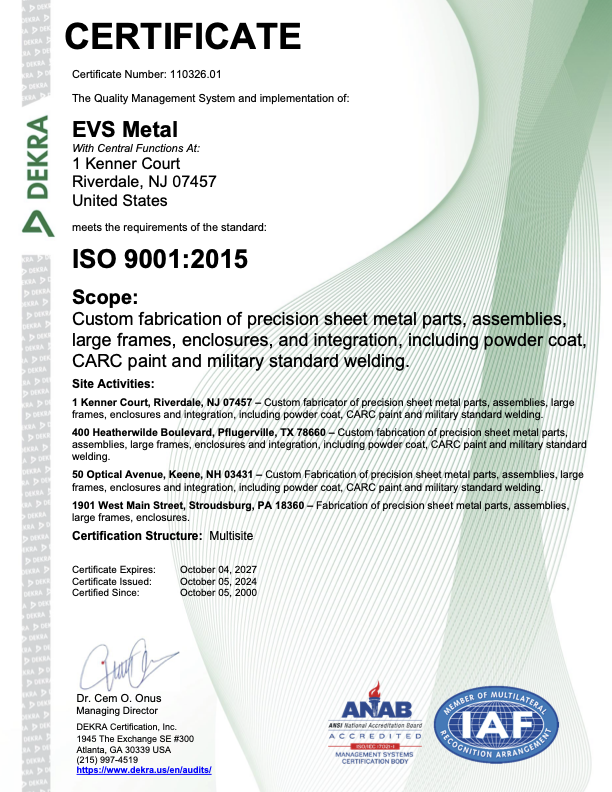

Our corporate quality control system is ISO 9001:2015 certified, showcasing our commitment to structured, standards-based processes. This foundation empowers us to consistently deliver the highest caliber of metal parts and products through a company-wide culture of continuous improvement and accountability.
We leverage computer-based quality systems that ensure full traceability—every part and process step is logged and auditable. These advanced records complement our use of Amada FabriVISION for precise scanning and inspection of flat parts, helping us uphold tight tolerances and exact specifications.
Our dedication doesn’t stop there. Each facility is outfitted with cutting-edge metrology tools and technologies—such as ROMER Absolute Arm, Virtek laser inspection systems, Aberlink and Cordax CMMs, and Mitutoyo height gauges—ensuring parts meet dimensional accuracy and functional integrity before they ever leave the shop floor.
These capabilities, combined with our lean and Six Sigma practices in QA (including FMEA, process capability studies, 5S, and corrective/preventative actions), help us drive error reduction and continually elevate quality across all operations.
By maintaining robust, tech-enabled quality control—from digital records to precision inspection—we’ve earned the trust to operate as a dock‑to‑stock vendor for many clients. This reflects not only our process integrity but also our ability to reliably align with customer inventory systems and expectations
MANUFACTURING TOLERANCES, DIMENSIONS & SPECIFICATIONS
These tolerances apply when customer specifications are not provided (e.g., solid models, physical samples, or underdimensioned prints). EVS may reference these standards when quoted tolerances cannot be met with standard manufacturing methods. While tighter tolerances are achievable through secondary processes (reaming, machining, hard tooling), they will impact cost and lead time. Critical tolerances must be indicated at order placement and will be evaluated by Engineering for manufacturability.
Unless otherwise specified, all dimensions/tolerances apply before finishing.
| Description | Tolerance (in) | Tolerance (mm) |
|---|---|---|
| Hardware Hole Diameter | +.003 / -.000 | +0.08 / -0.00 |
| Hole Diameter | +/- .005 | 0.13 |

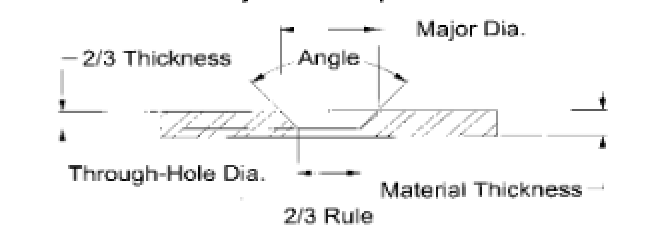

| Countersink Major Diameter | +/- .010 | 0.25 |
| Countersink Minor Diameter | +/- .010 | 0.25 |
Standard For Turret Formed Countersinks to avoid distortion caused by material displacement
STANDARD DIMENSIONS
| Description | Tolerance |
|---|---|
| Angular | +/- 1 degree |
| Fractional | +/- 1/64 |
| Bend Relief | .062 |

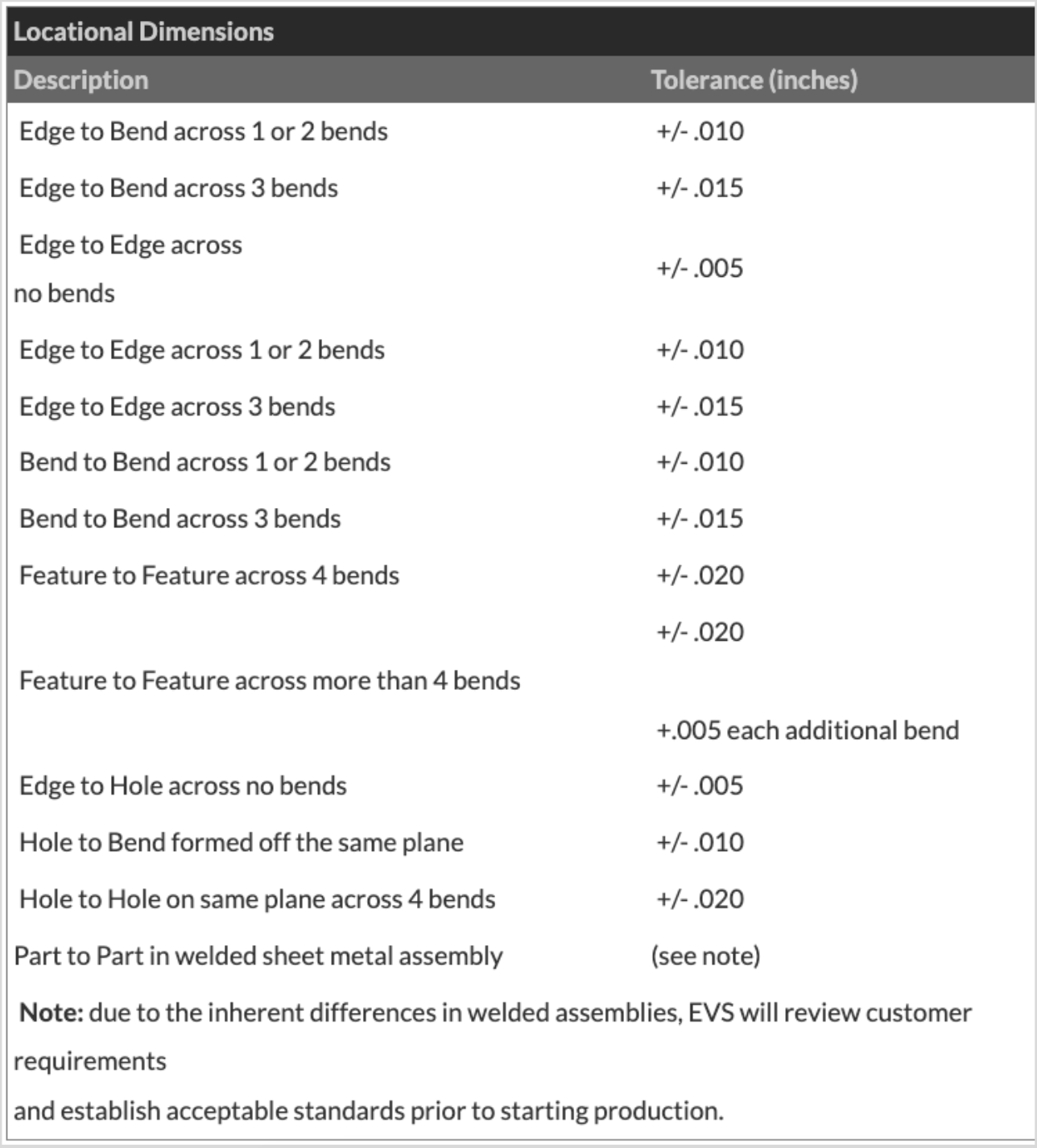

LOCATIONAL DIMENSIONS
| Description | Tol. (in) | Tol. (mm) |
|---|---|---|
| Edge to Bend across 1 or 2 bends | +/- .010 | 0.25 |
| Edge to Bend across 3 bends | +/- .015 | 0.38 |
| Edge to Edge across no bends | +/- .005 | 0.13 |
| Edge to Edge across 1 or 2 bends | +/- .010 | 0.25 |
| Edge to Edge across 3 bends | +/-.015 | 0.38 |
| Bend to Bend across 1 or 2 bends | +/-.010 | 0.25 |
| Bend to Bend across 3 bends | +/- .015 | 0.38 |
| Feature to feature across 4 bends | +/- .020 | 0.51 |
| Feature to feature across >4 bends | +/-.020+.005 ea | 0.51+0.13 ea |
| Edge to Hole across no bends | +/- .005 | 0.13 |
| Hole to bend (same plane) | +/- .010 | 0.25 |
| Hole to Hole (same plane) | +/- .005 | 0.13 |
| Part to Part (welded assembly) | (see note) | (see note) |
Note: Welded assemblies reviewed by EVS Engineering prior to production.
Solid Model format by order of preference: SolidWorks (.SLDPRT, .SLDASM), Pro-E (.PRT, .ASM), Parasolid, STEP, IGES
EVS DEFAULT PLATING SPECIFICATIONS
| Process | Material or other pertinent factors | Specification nomenclature |
|---|---|---|
| Clear Zinc | N/A | ASTM B633-98, Class FE/ZN 8, Type III |
| Yellow Zinc | N/A | ASTM B633-98, Class FE/ZN 8, Type II, Yellow Chromate |
| Black Zinc | N/A | ASTM B633-98, Class FE/ZN 8, Type II, Black Chromate |
| Clear Iridite | N/A | MIL-C-5541E, Class 1A, Clear |
| Yellow Iridite | N/A | MIL-C-5541E, Class 1A |
| Electrodeposited Nickel | COPPER | QQ-N-290A, Class 1, Grade D |
| Electrodeposited Nickel | STEEL | QQ-N-290A, Class 1, Grade C |
| Electroless Nickel | ALUMINUM | MIL-C-26074E, Class 1, Grade A |
| Electroless Nickel | COPPER | MIL-C-26074E, Class 1, Grade B |
| Electroless Nickel | STEEL | MIL-C-26074E, Class 1, Grade C |
| Anodize – Clear | N/A | MIL-A-8625F, Type 2, Class 1 |
| Anodize – Black | N/A | MIL-A-8625F, Type II, Class 2, Black |
| Anodize – Gold | N/A | MIL-A-8625F, Type II, Class 2, Gold |
| Anodize – Grey | N/A | MIL-A-8625F, Type II, Class 2, Grey |
| Tin Plate | BRIGHT DIP must be specified if required | ASTM-B545-97, Class A |
CERTIFICATIONS
UL-Certified Type 1 508A Enclosures
EVS Metal’s NJ facility is authorized to design and build UL-Certified Type 1 508A Enclosures. View the industrial standards here.
This capability allows our clients to authorize EVS Metal to custom fabricate new enclosures that are UL certified. Rather than being forced to choose from pre-fabricated, off-the-shelf enclosures to ensure UL certification, they may instead collaborate with our engineering team to design the exact size and configuration required without being constrained by what is currently in stock from companies with certified product lines.
Additional EVS Metal Certifications
